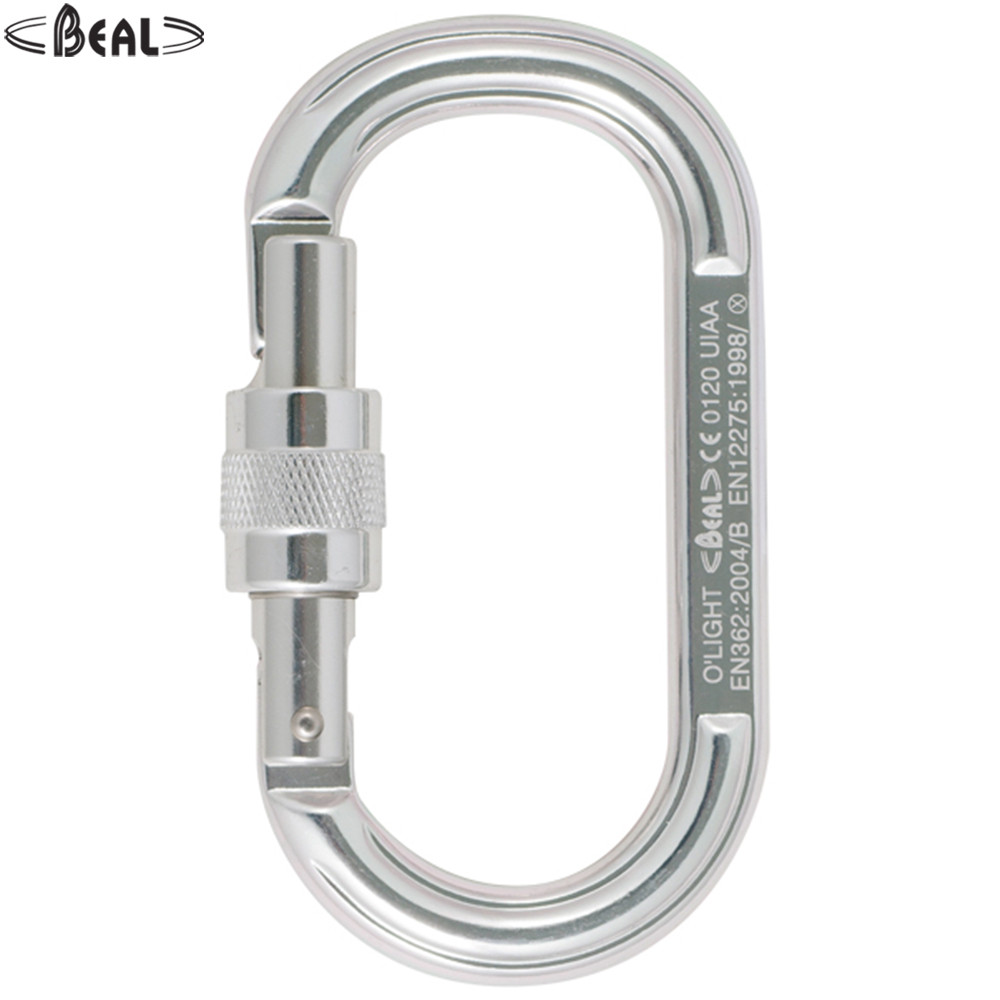

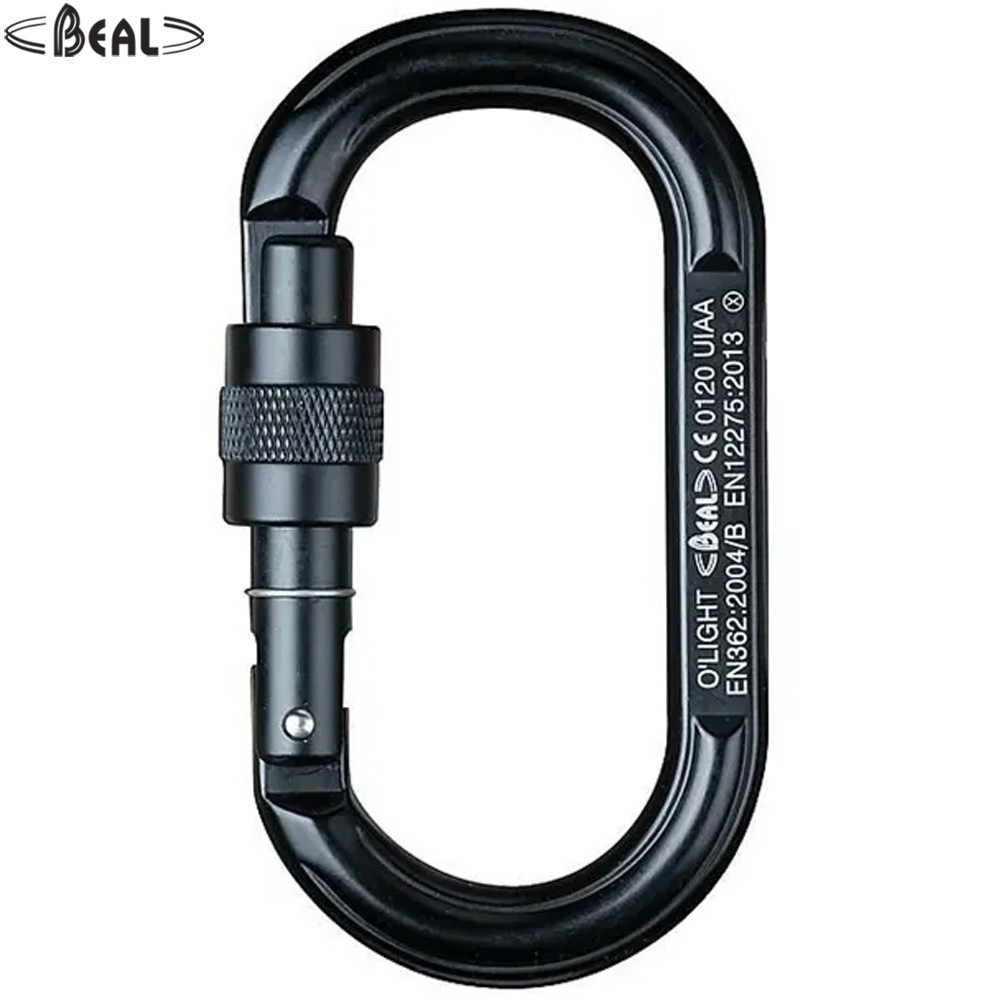

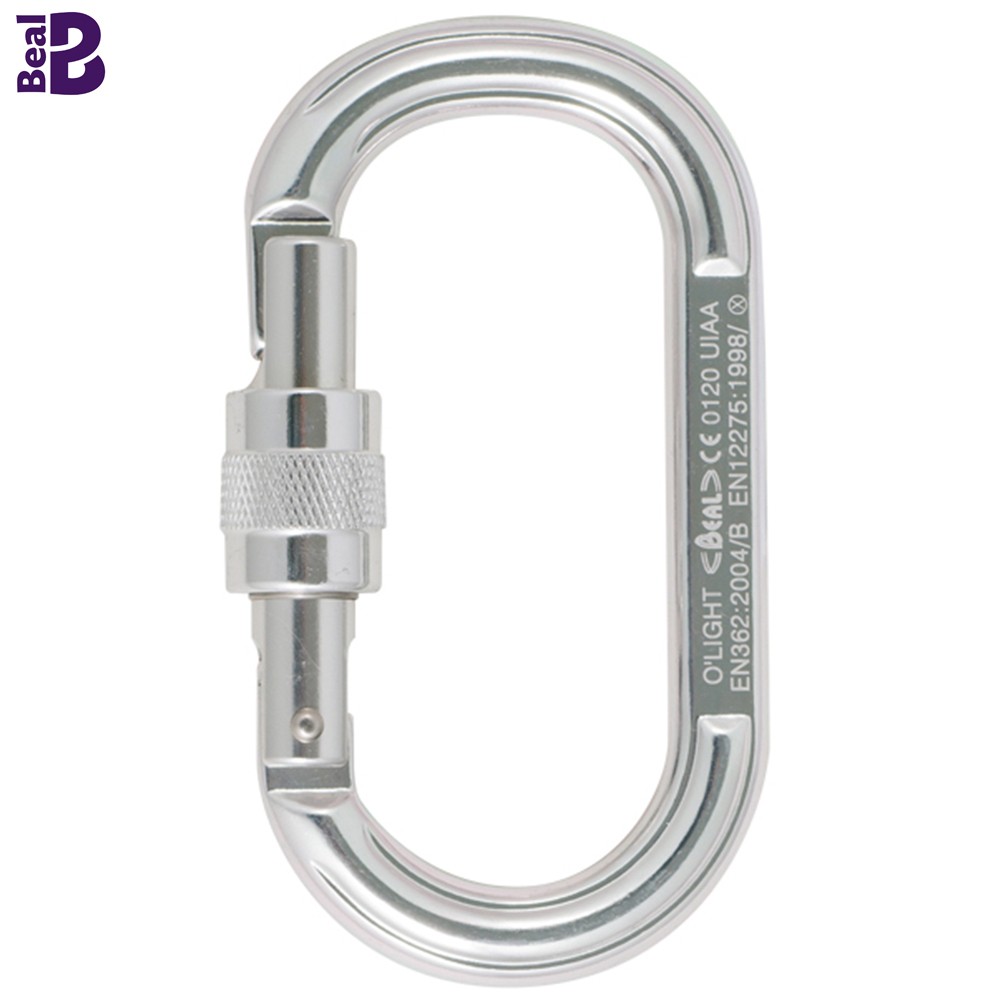

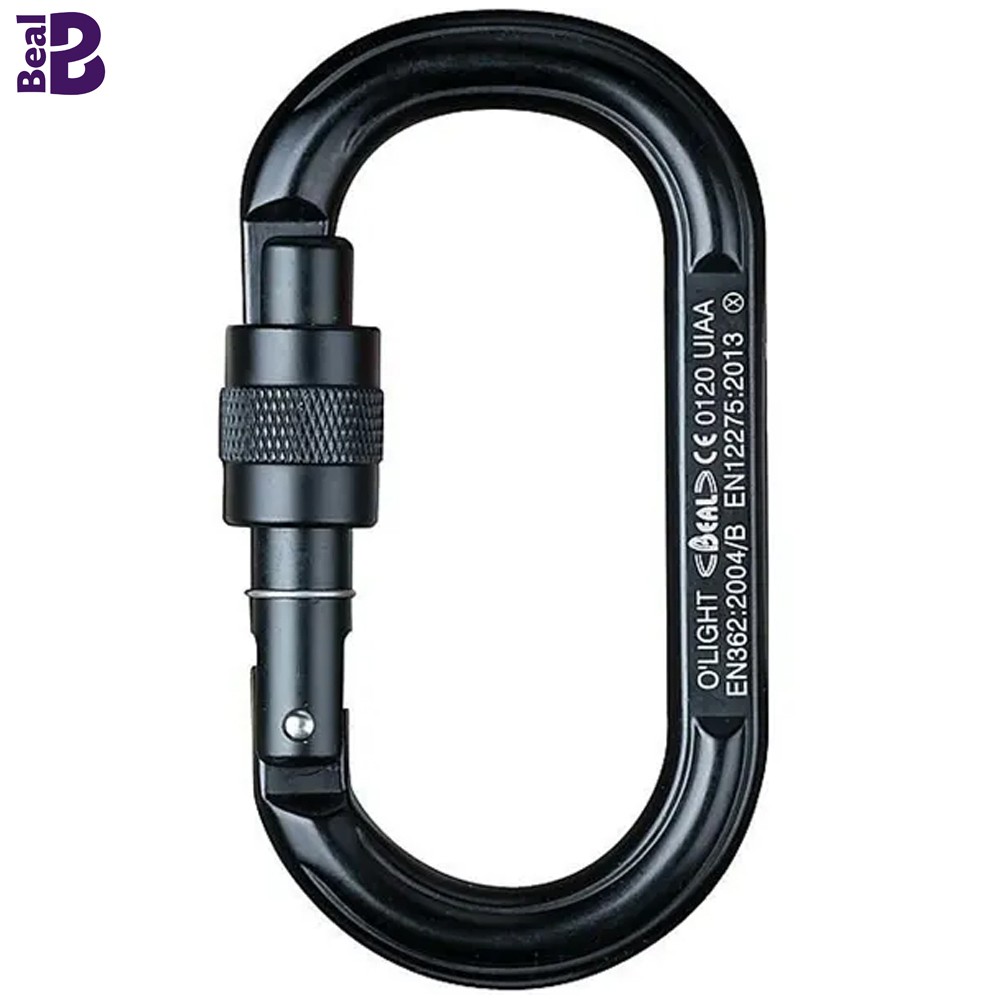

BEAL O'Light Screw Carabiner

• Symmetrical Oval Design: The O’LIGHT (SCREW) features a symmetrical oval-shaped design that provides balanced positioning and excellent load distribution during use.
• Designed for Double-Flange Equipment: Specially optimized for equipment with swiveling side plates, making it ideal for connecting pulleys, ascenders, rope clamps, and mobile fall arrest devices.
• Optimal Equipment Alignment: Its symmetrical shape helps keep connected equipment properly aligned, reducing unwanted movement and improving smooth operation.
• Lightweight Aluminum Construction: Manufactured from high-quality aluminum, providing a strong yet lightweight connector that is easy to carry and suitable for applications where reducing equipment weight is important.

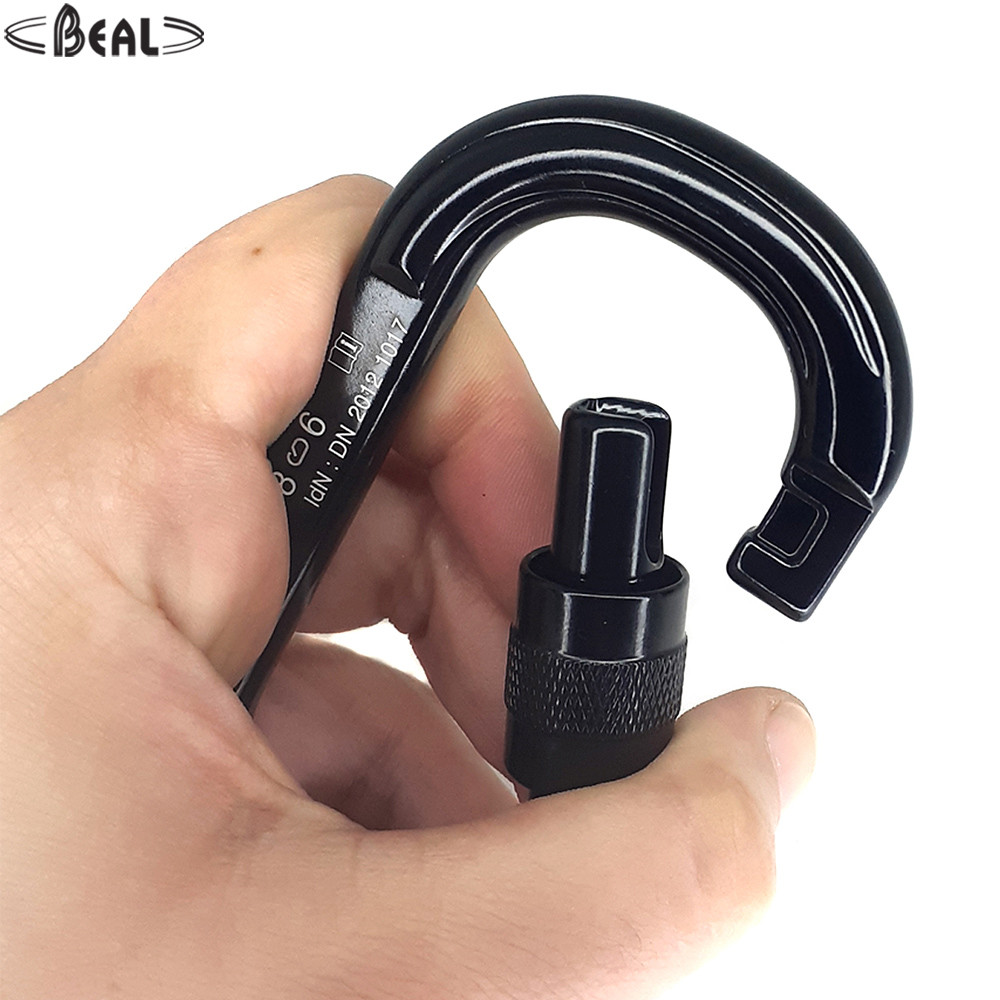

• Manual Screw-Lock System: The screw-lock mechanism gives the user direct and precise control over opening and closing the carabiner, helping ensure secure connection when properly locked.
• Keylock System: The Keylock nose design minimizes the possibility of the carabiner catching or snagging on ropes, webbing, equipment, or other connection points.
• High Strength: With a 22 kN major-axis strength, the carabiner provides a strong connection when correctly loaded along its main axis.
• Reliable Secondary-Axis Strength: The 8 kN minor-axis strength provides additional resistance when the carabiner is subjected to loading away from its major axis.
• Open-Gate Strength: The carabiner provides 6 kN strength with the gate open, although the connector should always be used correctly with the gate fully closed and locked.
• Wide Gate Opening: A 17 mm gate opening allows convenient clipping and connection to compatible equipment.
• Individual Serial Number: Each carabiner has an individual serial number, supporting equipment identification and traceability.
• Versatile Professional Use: Suitable for professional applications as well as sport activities where a lightweight, symmetrical oval connector is required.
• Suitable for Rope-Access Equipment: Its shape and locking system make it particularly useful for rope-access systems involving pulleys, ascenders, rope clamps, and mobile fall-arrest equipment.
• Smooth Handling: The combination of the oval shape, Keylock nose, and screw-lock system provides convenient handling during repeated equipment connections.
• Aluminum Alternative to Steel: The O’LIGHT is designed as a lightweight aluminum option; the O’SMITH (SCREW) is the stronger steel alternative mentioned for applications requiring a steel connector.

SPECIFICATIONS

• Brand: Beal
• Model: O’LIGHT (SCREW)
• Model No.: 256621
• Product Type: Symmetrical Oval Carabiner
• Locking Type: Manual Screw Lock
• Carabiner Shape: Oval / Symmetrical
• Material: Aluminum
• Color: Silver / Black
• Weight: 77 g (0.077 kg)
• Major Axis Strength: 22 kN ≈ 2,244 kgf
• Minor Axis Strength: 8 kN ≈ 816 kgf
• Open Gate Strength: 6 kN ≈ 612 kgf
• Gate Opening: 17 mm
• Locking System: Screw Lock
• Nose System: Keylock
• Individual Identification: Serial Number
• Standard: EN 362:2005 – Class B
• Standard: EN 12275:2013 – Class X
• Sport: Yes
• Professional: Yes
• Product Range: Carabiner
